30A single-pole ring type self-locking with lamp Featured Image
  • 30A single-pole ring type self-locking with lamp

30A single-pole ring type self-locking with lamp

Short Description:

`Product Model: Q30A.

`Type:Single pole,Ring power lamp,Maintained.

`Material:304 stainless steel housing，PA66.

`Protection level: IP67, IK10, IP40.

`Electrical parameters: 5A /250VAC.

`Contact resistance:≤50Ω.

`LED voltage: 3V-220V.

`Service temperature range:-20℃—55℃.

`Lamp bead life:40,000 hours.

`Mechanical life: 30 times/min，500,000 times.

`Insulation resistance:≥1000MΩ.


  • :

    • Product Detail

    FAQ

    Product Tags

    Product Characteristics Q30A.

    1. Adopt flame retardant material, safety guarantee, stainless steel shell anticorrosion and dust proof.
    2. Contains PC button, silicone waterproof ring, high performance, solid and reliable.

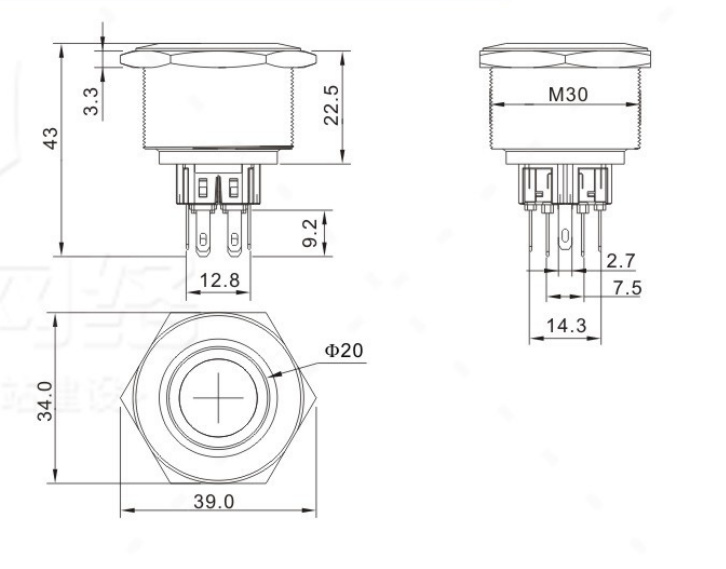

    Product Drawing

    as

    Application Areas Q30A.

    The product can be applied to transportation,safety equipment,household appliances,medical equipment, starter,Bathroom, accesscontrol.

    Package picture

    sad
    asd
